EVOH EW-3801

EVOH EW-3801

Overview

EVOH is a high-barrier material that exhibits excellent foaming properties against gases, fragrances, fragrances, solvents, etc. It also has good processability, transparency, mechanical strength, wear resistance and cold resistance. In terms of food packaging, plastic containers with EVOH barrier layers can replace many glass and metal containers.







General properties

Product name: 38 mol% Ethylene-VinylAlcohol Copolymer

  Items Specifications
   Appearance White transparent particle
Melting index (190℃,2160g/10min) 1.5-2.5
Chroma ≤20
 Volatile content(%) ≤0.3
 Ethylene(mol%) 36.0-40.0
Density (g/cm3) 1.10-1.20



Technical Data of EVOH EW-3801



Typical Properties

Unit

TestMethod

Metric

MFR

g/10min

ISO 1133(190°℃)

1.8

Density

10³kg/m³

ISO 1183-3

1.16

Thermal Properties

Unit

Test Method

Metric

Melting Temperature

℃(°F)

ISO 11357

173

Crystallization Temperature

℃(°F)

ISO 11357

152

Glass Transition Point

℃(°F)

ISO 11357

57

Vicat Softening Point

℃(°F)

ISO 306

103

Mechanical Properties

Unit

Test Method

Metric

Tensile stress atbreak

MPa

ISO 527

32

Elongation atbreak

%

ISO 527

17

Young's Modulus

GPa

ISO 527

3.1

Flexural Modulus

GPa

ISO 178

3.6

Charpy Impact Strength

kJ/m²

ISO 179-1

2.1

Rockwell Hardness

HRM

ISO 2039-2

89

BarrierProperties(cast film)

Unit

Test Method

Metric

Oxygen Transmission Rate

cm³20μm/m².da(20°℃,20%RH)

ISO14663-2 AnnexC

0.64

Typical properties:These are not to be construed as specifications.





Applications:

1. Packaging materials: This series of products is widely used in packaging of food, medicine, daily chemicals, etc. due to its excellent gas barrier properties and transparency.

2. Pipe materials: This series of products has excellent processing, molding, oxygen barrier and other properties, and can be used for oxygen barrier floor heating pipes, etc., playing a role in creating a comfortable living space.

3. Automobile fuel tanks: This series of products has excellent oil resistance, solvent barrier and other properties, and is an ideal material for manufacturing automobile fuel tanks and other containers.

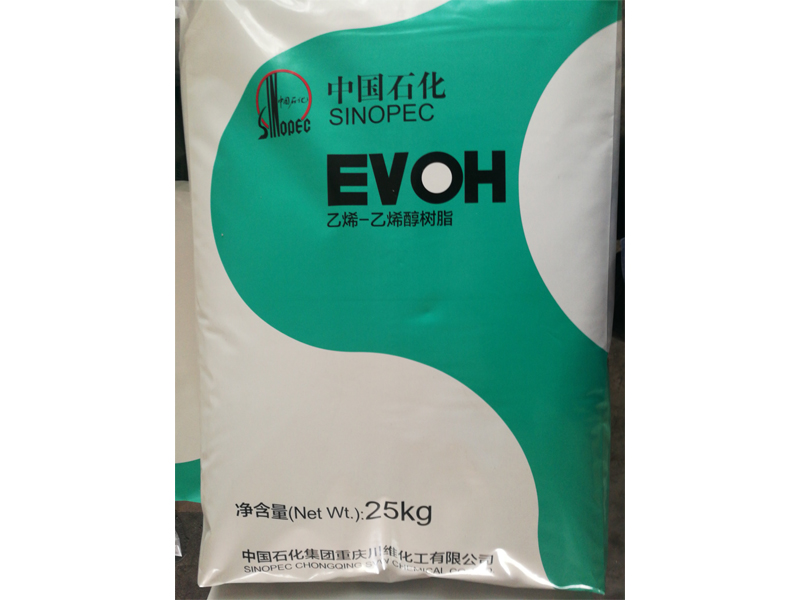

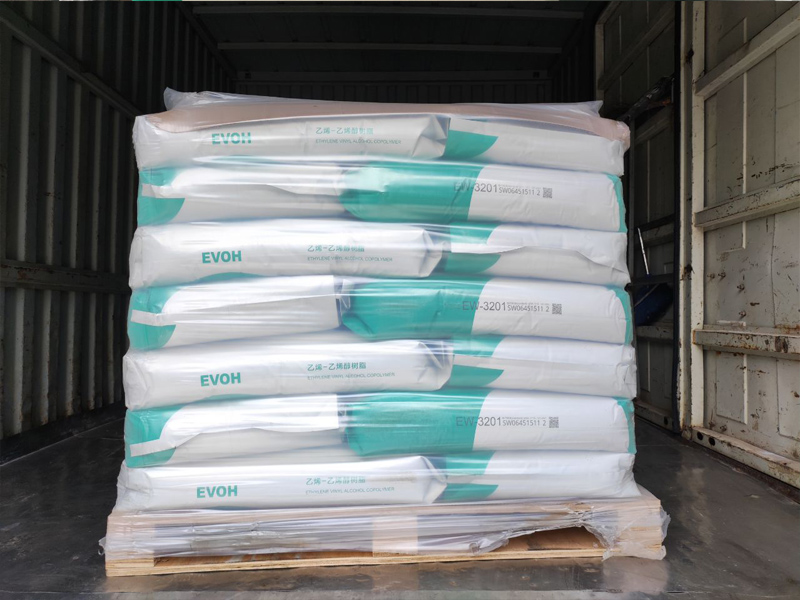

Packages:

Packages:20 kg/bag,25 kg/bag, 800kg/bag.

Storage:

Store in accordance with local regulations on safe storage of chemical products.

Store in a dry, well-ventilated place. Stay away from hot objects, sparks, and other sources of ignition.
